The company is a manufacturer engaged in the research and development of pipe processing equipment. We have always been committed to designing and manufacturing advanced CNC pipe bending machines, single head hydraulic pipe bending machines, double head hydraulic pipe bending machines, circular pipe machines, automatic pipe cutting machines, metal circular saws, pipe end forming machines, chamfering machines, aluminum cutting machines and other pipe processing equipment.
‹
›
‹
›

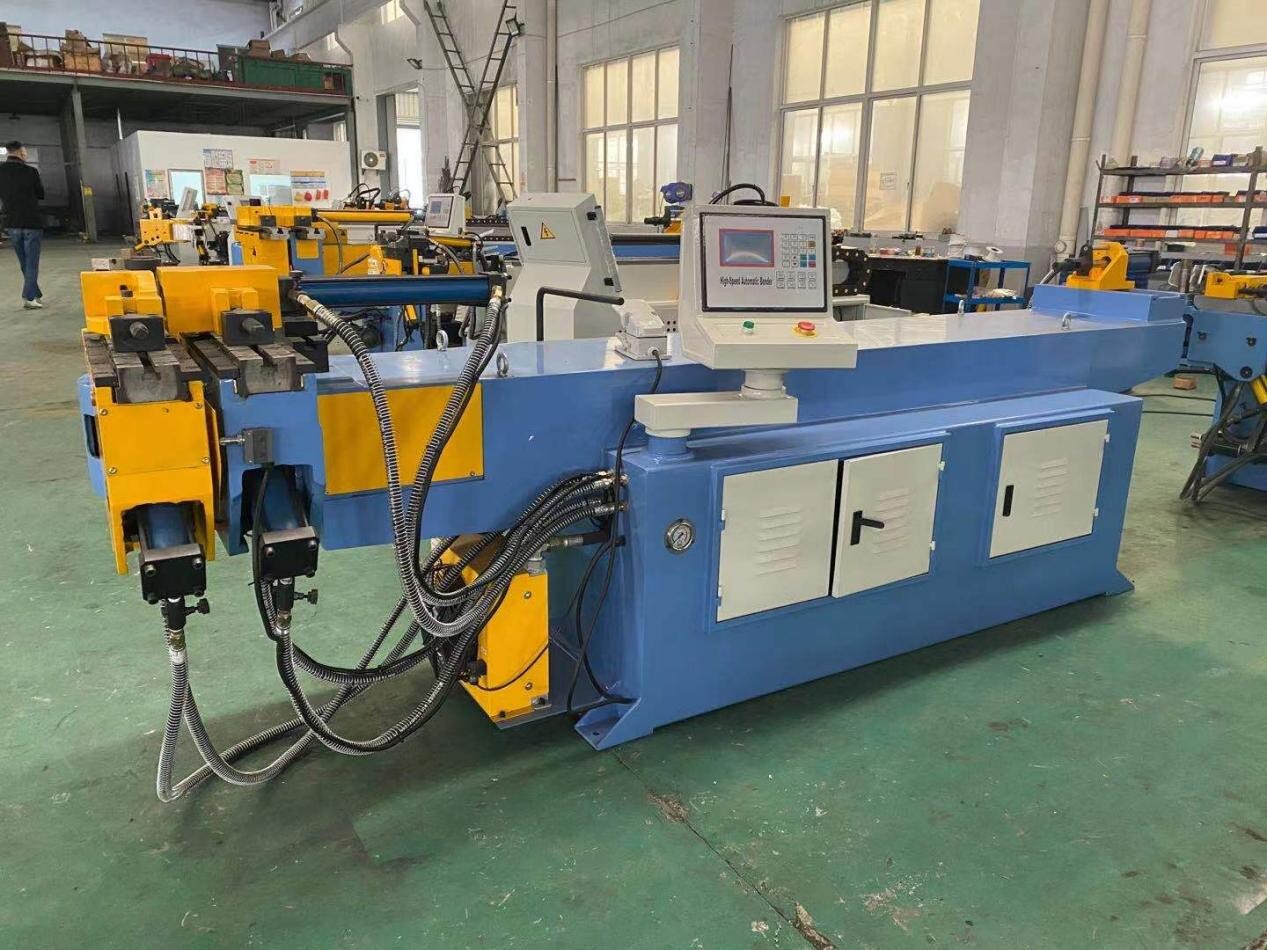

Bed part
The bed part is a bending and welding structure, which is the carrier of other parts.
Main drive part
The main drive part is composed of three parts: spindle, sprocket, chain and cylinder, which can realize bending and return action.
Clamping part
The clamping structure is used to clamp the pipe and rotate with the spindle so that the abrasive tool and the pipe fitting rotate at the same time.
Guide part
The guide mechanism supports the straight part of the pipe during the bending process, and the pipe moves forward with the guide mold during the bending process. The clamping action of the clamping guide structure is driven by the hydraulic cylinder, and the peephole cover plate on the side can be opened for inspection, maintenance and adjustment.
Mandrel mechanism
Mandre mechanism is located at the back of the bed, through the screw drive, the required bending radius of the mandrel can be adjusted. The mandrel action is realized by the mandrel and the oil cylinder, and the lead of the mandrel can be adjusted by adjusting the nut. The mandrel support device, supporting mandrel and pipe fittings are installed on the bed.
Hydraulic system
The hydraulic system control components are imported from Taiwan brand, the hydraulic system adopts integrated channel block structure, the hydraulic pipeline adopts seamless steel pipe, and the high pressure hose is used at the active connection. The "U" shaped quick fitting joint eliminates the system leakage phenomenon and improves the reliability of the hydraulic system.
Electrical system
Electrical system field 50HZ, 380V three-phase AC power supply, control line route 380/110V control transformer power supply, used to control the contactor, intermediate relay and solenoid valve work, the main electrical components selected imported brands, the power line is mainly driven by a Y series three-phase asynchronous motor hydraulic system. The main control components are controlled by Japanese Mitsubishi PIC program, and all the control button signals come from the safety cabinet.
Mold part
The mold of the machine is composed of bending die, moving jaws, pressure die, core, etc., and anti-wrinkle plate and soft core head can also be added according to the needs of users and actual pipe bending to improve the bending quality of the pipe.
The machine is equipped with safety limit and emergency stop button to ensure the safety of the operator.
Configuration Table
Single head hydraulic pipe bender DW219NCThe structure of the machine consists of 8 parts: Bed part, main drive part, clamping part, guide part, mandrel mechanism, hydraulic system, electrical system, mold part, the feeding part and the corner part.- Single head hydraulic pipe bender DW168NCThe structure of the machine consists of 8 parts: Bed part, main drive part, clamping part, guide part, mandrel mechanism, hydraulic system, electrical system, mold part, the feeding part and the corner part.
Single head hydraulic pipe bender DW130NCThe structure of the machine consists of 8 parts: Bed part, main drive part, clamping part, guide part, mandrel mechanism, hydraulic system, electrical system, mold part, the feeding part and the corner part.
DW130CNC-2A-1S Automatic high precision servo pipe bending machineThe structure of the machine includes the bed part, the main transmission part, the clamping part, the guide part, the mandrel mechanism, the hydraulic system, the electrical system, the mold part, the feeding part and the corner part.
